Cutting-Edge 5.8G Microwave Radar Modules

The 5.8GHz microwave radar module is a compact electronic device with a built-in antenna to detect the presence or movement of objects within its range.The radar module can detect that if there have the moving or existing objects in the region by frequent difference between the transmit and receive signals (Doppler Principle)or high-frequency electromagnetic waves.These modules provide high-performance solutions for various industries such as smart home, smart lock,smart security,intelligent lighting, pet appliances.

Get a Quote

Filter

Showing 1–12 of 13 results

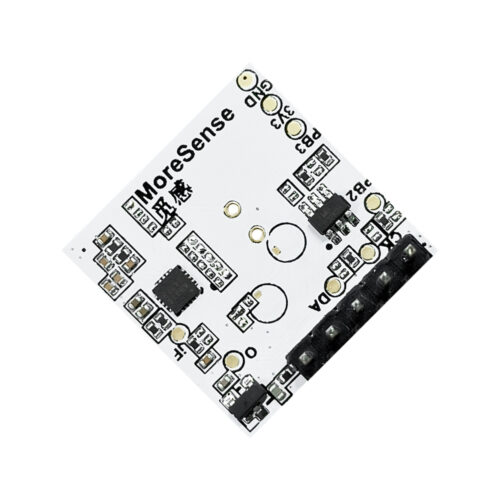

5.8G Microwave Radar Module

MS58-1616S85U4

5.8G Microwave Radar Module

MS58-1616S13M4

5.8G Microwave Radar Module

MS58-3320D13M4

5.8G Microwave Radar Module

MS58-2020D85U4

5.8G Microwave Radar Module

MS58-2020D9M4

5.8G Microwave Radar Module

MS58-2220D9M4

5.8G Microwave Radar Module

MS58-2020D13M4

5.8G Microwave Radar Module

MS58-2020D68U4

5.8G Microwave Radar Module

MS58-2020D20M4-LIVE

5.8G Microwave Radar Module

MS58-14172S20M4

5.8G Microwave Radar Module

MS58-1414D20M4

5.8G Microwave Radar Module

MS58-2020D20M4

Support ODM & OEM

We provide comprehensive customization services to meet the needs of different customers. Whether it is hardware parameters, functional characteristics, or appearance design and software configuration, we can tailor the most suitable solution for you. Look at the table below and you will have a better idea of ​​what customization we can provide.

Power Supply Voltage Sensing Out Method Setting Parameter Supplement Interface Current More MoreSense Customization
3.3V IO Out (Reverse Supported) IO Setting Para. Lighting Sensor DIP 29uA or 40uA Module Dimension
5V UART UART Power Management Function SMT 9mA Module Shape
12V PWM IIC — Socket 13mA Module Software
24V — — — — 20mA —
Get a Quote

Key Advantages Of Our 5.8G Microwave Radar Modules

Short-Range Detection

The module is ideal for short-range applications, detecting objects moving at speeds up to 3m/s, making it ideal for proximity sensor and motion detector in most smart application.

Compact Size

The module is compact and can be easily integrated into a wide range of electronic systems for applications where space is limited, allowing hardware customization to specific application requirements.

Adjustable Parameters

5.8 GHz radar modules typically have adjustable delay time,detection ranges (0-30meters) and sensitivity settings, allowing software customization to specific application requirements.

Reliable Detection

Fixed frequency range from 5.725GHz to 5.875GHz.The radar module provides reliable object detection and it is not affected by temperature, dust, smoke or low light within a certain range. The sensor can easily penetrate glass, wood and other materials (except metal and solid concrete walls).
Get a Quote

Comparison -5.8G RARADAR vs. Infrared Sensor Infrared Sensor

Item# Infrared Sensor MoreSense 5.8G Radar Sensor
Product Structure There will be needed for a opening hole and lenses on structure There will not be needed for a openingholeand can be installed concealed
Temp. Characteristics Be sensitiveabout Temp.,easily triggered or failed in summer or outdoors Sensing characteristics are not affected by ambient temp.
Light Characteristics Performance will be affected by strong light or light intensity changes Unaffected by light
Consistency Poor consistency.Due to environmental influence Good consistency.Single IC solution,andit willnot affected by environment
Sensing Distance Small sensing range,3~5m Large sensing range,1~30m
Sensitivity Not high sensitivity,weak radial sensitivity High sensitivity,adjustable at the same time
Power Consumption <70uA,support to be battery powered Low power version 29uA,battery powered
Dust Affected by dust obstruction Unaffected by dust obstruction
Get a Quote
