MS24-2020D58M4-CW

Micro-Motion Detector

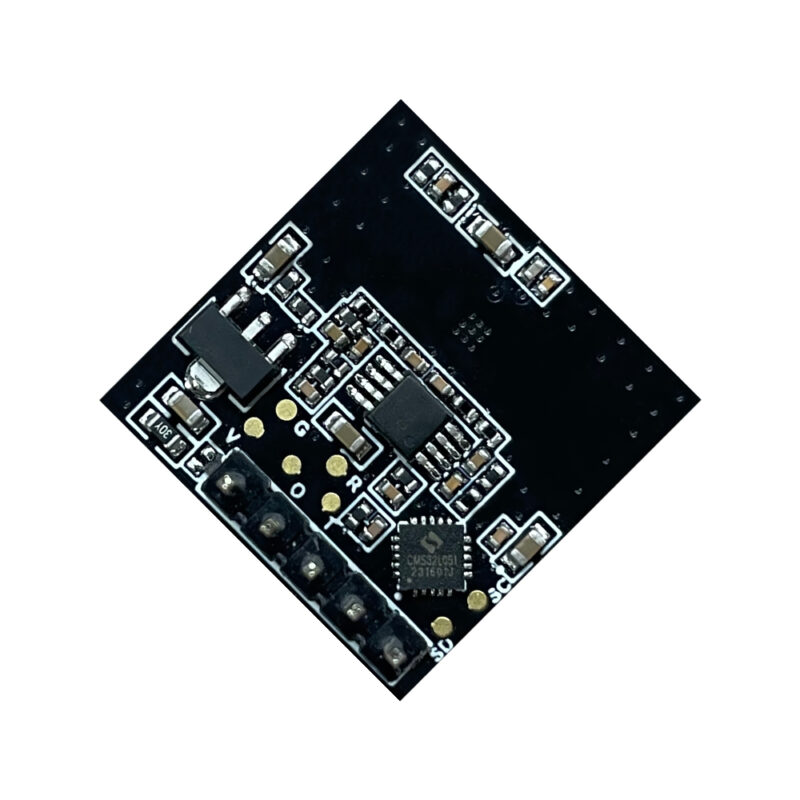

The MS24-2020D58M4-CW is a miniaturized, low-cost 24GHz millimeter-wave radar sensor for lighting sensing, security camera linkage, and smart home sensing.This system utilizes the frequency difference between electromagnetic wave transceiver signals to detect the distance of moving targets.A 24GHz electromagnetic signal is emitted through the transmitting antenna, which is reflected back to a moving object with a certain delay when it encounters a objects in a certain distance.The reflected signal is received by the receiving antenna, and the IF signal with the target distance signal is obtained by mixing the received and transmitted signals,which can be calculated and analyzed to get the information of the target.

Product Features

Working Frequency: 24G frequency band;
Based on CW algorithm,support motion,micro-motion sensing;
Can penetrate thin non-metallic materials such as acrylic and glass;
Unaffected by environmental humidity, airflow, dust, noise, brightness and darkness.

Specification

Item #	MS24-2020D58M4-CW
Features	Motion Sensor
Frequency Range	24.000GHz~24.250GHz
Transmit Power	3dBm
Data Interface	GPIO/UART
Operating Voltage	DC5-12V(default version);optional DC3.3V
Operating Current	20mA(typical value)
Dimension	20mm * 20mm
Sensing Output Level	DC3.3V
Silent Output Level	0V
Sensing Output Time	2s(can be adjusted)
Adjustable Sensing Distance Range	6meters
Max. Sensing Distance in Radius with Assembly Height 3m	4 meters
Setting Parameter Ways	UART
Certification Standards	FCC/CE/SRRC/ROHS/UL
Antenna angle	±45°
Place of Origin	Shenzhen,R.P.China
Brand Name	MoreSense
