MS58-2020D68U4

Low Powered Motion Sensor (DIP Interface Type)

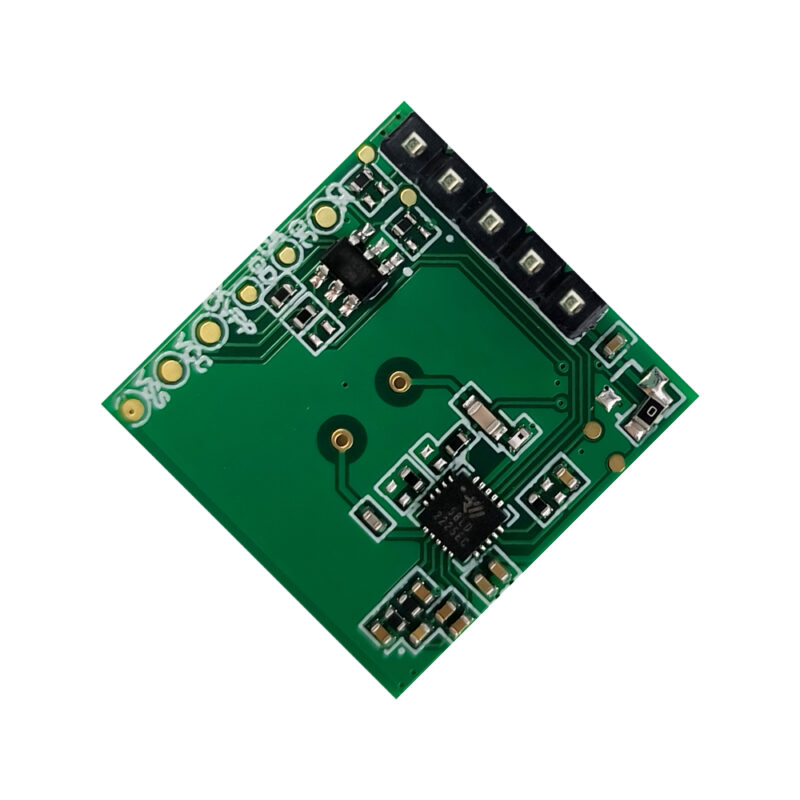

MS58-2020D68U4 is a miniaturized 5.8G radar sensor module launched by MoreSense. The ultimate power consumption can reach about 40uA.This module uses high-performance radar sensors combined with miniaturized planar antennas to achieve a size of 20 x 20mm while ensuring the performance of the sensor.

Product Features

Microwave radar sensor based on Doppler effect.
Working Frequency Band:5.8G ISM Frequency Band.
Sensing distance and delay time can be adjusted flexibly according to different application.
Using mature CMOS technology to achieve fully integration of ultra-cost-effective.
The chip has a built-in LDO that supports wide-voltage power supply.
The single chip can directly output inductive control signals because of an integrated SOC signal processor.
Ultra low-power consumption,the overall current is less than 70 uA,and can be powered by batteries.
Support standard IIC interface,can be interconnected with other main control or sensors.

Specification

Item #	MS58-2020D68U4
Features	Motion & Position Sensor
Frequency Range	5.725GHz-5.875GHz
Transmit Power	-4dBm
Data Interface	GPIO/UART
Operating Voltage	DC3.3V
Operating Current	40uA or 68uA(typical value)
Dimension	20mm * 20mm
Sensing Output Level	DC3.3V
Silent Output Level	0V
Sensing Output Time	2s(can be adjusted)
Adjustable Sensing Distance Range	0-10meters
Max. Sensing Distance in Radius with Assembly Height 3m	5 meters
Setting Parameter Ways	UART/IIC/IO/1-Wire
Certification Standards	/
Antenna angle	±60°
Place of Origin	Shenzhen,R.P.China
Brand Name	MoreSense
